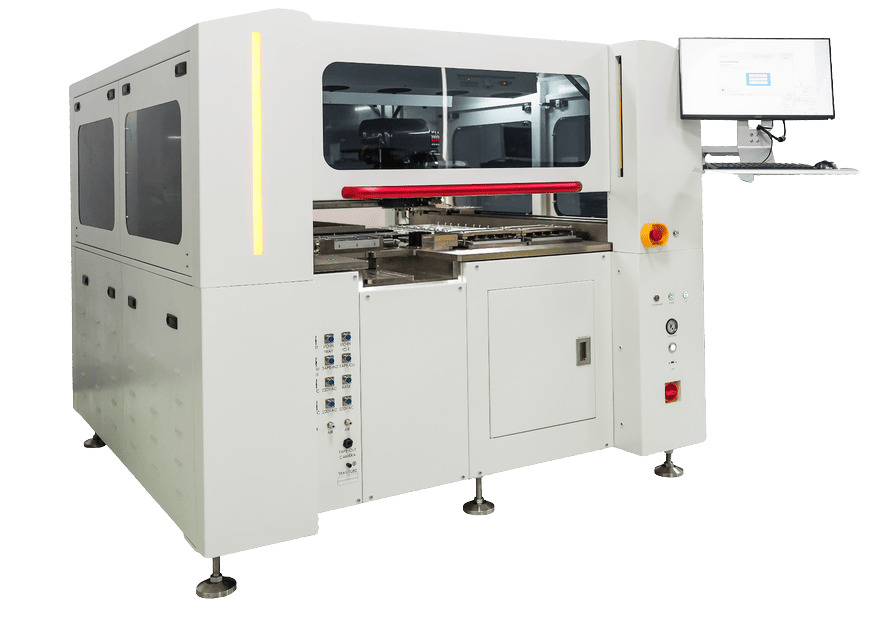

Velomax AST-9000 is an advanced automated IC programming system designed for high-density device production. It integrates programming, inspection, marking, and packaging into one system, delivering high precision, reliability, and flexibility for various IC types and package sizes.
Multi-functional automation combining programming, 2D/3D inspection, marking, and repacking.
Ultra-high throughput up to 3000 UPH with stable dual-drive linear motor system.
Supports multiple IC types and packages including EEPROM, NAND/NOR Flash, MCU, eMMC, and UFS.
User-friendly software with MES connectivity, quick setup, and unique key customization.
*We respect your confidentiality and all information are protected.
AST-9000, the latest advanced automated programming system, specially designed for high density devices production such as NAND flash, eMMC and UFS…etc. It can support the tiniest IC packages like BGA, and CSP types.
For programming production need, AST-9000 is able to embed 8 units of gang programmers, 3D inspection, laser marker, and different input/output peripherals such as JEDEC tray loader, taping machine and tube modules.
1. Pick & Place System |
|
|---|---|
| Accuracy XY | ±0.02MM |
| Number of Nozzles | 4 |
| Highest Throughput | 3000UPH |
2. Transmission System |
|
|---|---|
| Drive System | XYX axis: Motorised linear motor / θ axis: Stepper Motor |
| Resolution - X/Y/Z | XY axis: 10000PPR / Z axis: 8000PPR |
| Maximum Stroke - X/Y/Z | X axis: 870mm / Y axis: 1010mm / Z axis: 35mm |
| θ Axis Resolution | 0.15° |
3. AOI Vision System |
|
|---|---|
| Camera Pixels | Upper CCD: 1.3MP / Bottom CCD: 3.2MP |
| Vision Accuracy | 1.3MP ±0.02 / 3.2MP ±0.01 |
| Vision Process Time | 0.01S/device |
4. Operation System |
|
|---|---|
| PC O/S | Windows 10 |
| Input Voltage | 220~240V Single Phase /50-60Hz/2.5kW |
| Power Consumption | 4.6kW |
| Air Flow | 45L/min |
| Air Pressure | 0.6MPa |
5. Programming System |
|
|---|---|
| Programmer and Socket Sites | Aerospeed-G *8, 64 sites |
| Support Type of IC | UFS, eMMC, eMCP, MCU/MPU, NOR/NAND Flash, EEPROM, SP Memory, FPGA, CPLD, etc. |
| Support Type of IC Package | DIP, SDIP, SOP, SSOP, TSOP, PLCC, QFP, QFN, SON, BGA |
6. Input / Output System |
|
|---|---|
| Input / Output System | Tray / Tube / Tape |
7. Marking System |
|
|---|---|
| Marking System | Laser marker, Ink marker, Inkjet marker, Label feeder |
8. Dimension |
|
|---|---|
| Dimension (W*D*H) | 2145mm × 1675mm × 1570mm |
